DroneCloak
A rapid-deployment, dome-style Faraday cover that neutralizes and isolates a downed drone from a safe standoff distance. Drape it, and the command link, video downlink, and remote triggers go quiet.
Under
Pole Reach
Diameter
Lab Tested
A Downed Drone Is Still Broadcasting
A scrambler drops the aircraft. It does not silence it. Until the radios are shielded, the airframe can still be re-linked, still stream video, still phone home, and still act as a remote trigger. The DroneCloak establishes a conductive shield over the entire platform the moment it lands.
-
RadioControl Link
-
CellularLTE Backhaul
-
GPSPosition Lock
-
Wi-FiVideo Downlink
-
BluetoothLocal Pairing
-
TelemetryFlight Data
Ten Seconds From Pack to Contained
The whole system is one operator, one pole, one motion. No power, no calibration, no setup.
Extend
Telescoping pole runs from 44.25" collapsed to 132.5" extended, keeping the operator well clear of the target.
Hook
The pole hook picks up the integrated webbing straps sewn into the cloak for accurate lift and placement.

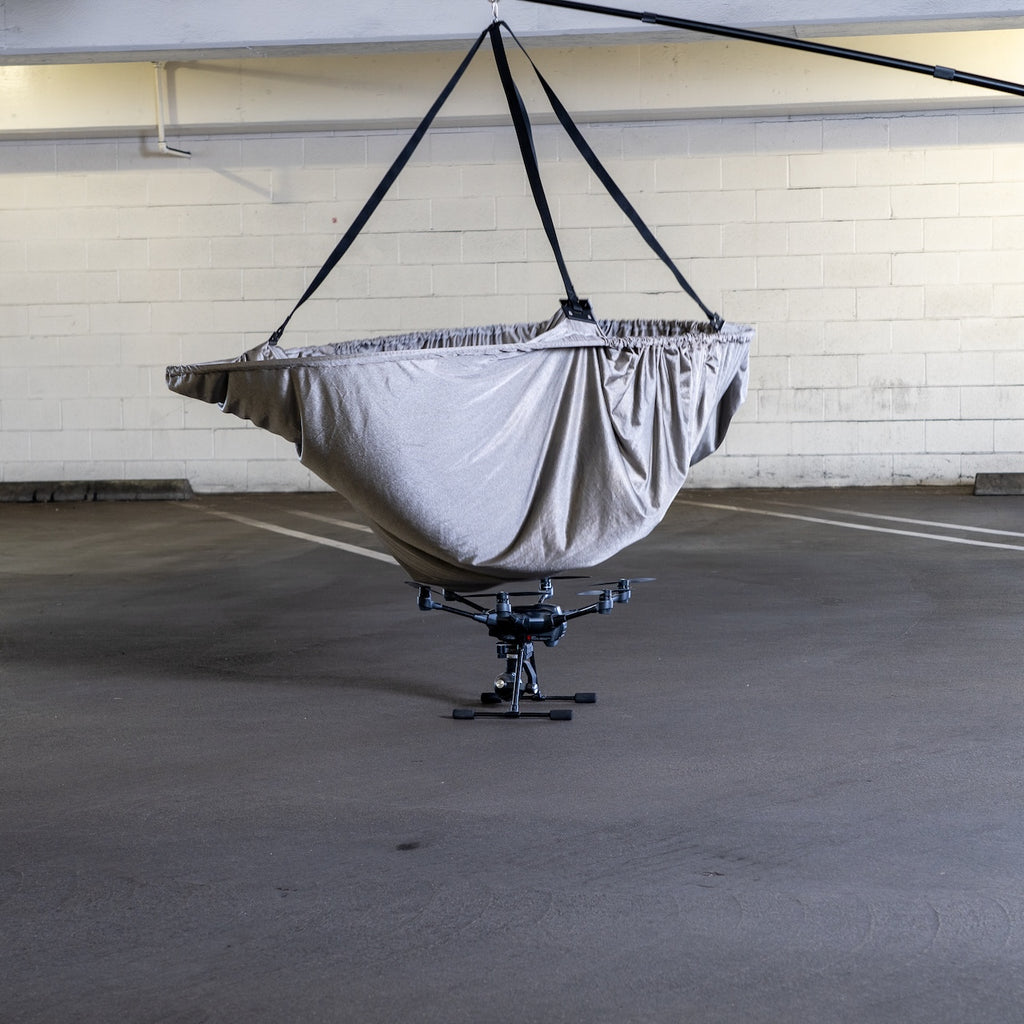

Drape
Lower the 48" dome over the airframe. Roughly 30" of loose fabric skirt swallows bulky payloads and rotor arms.

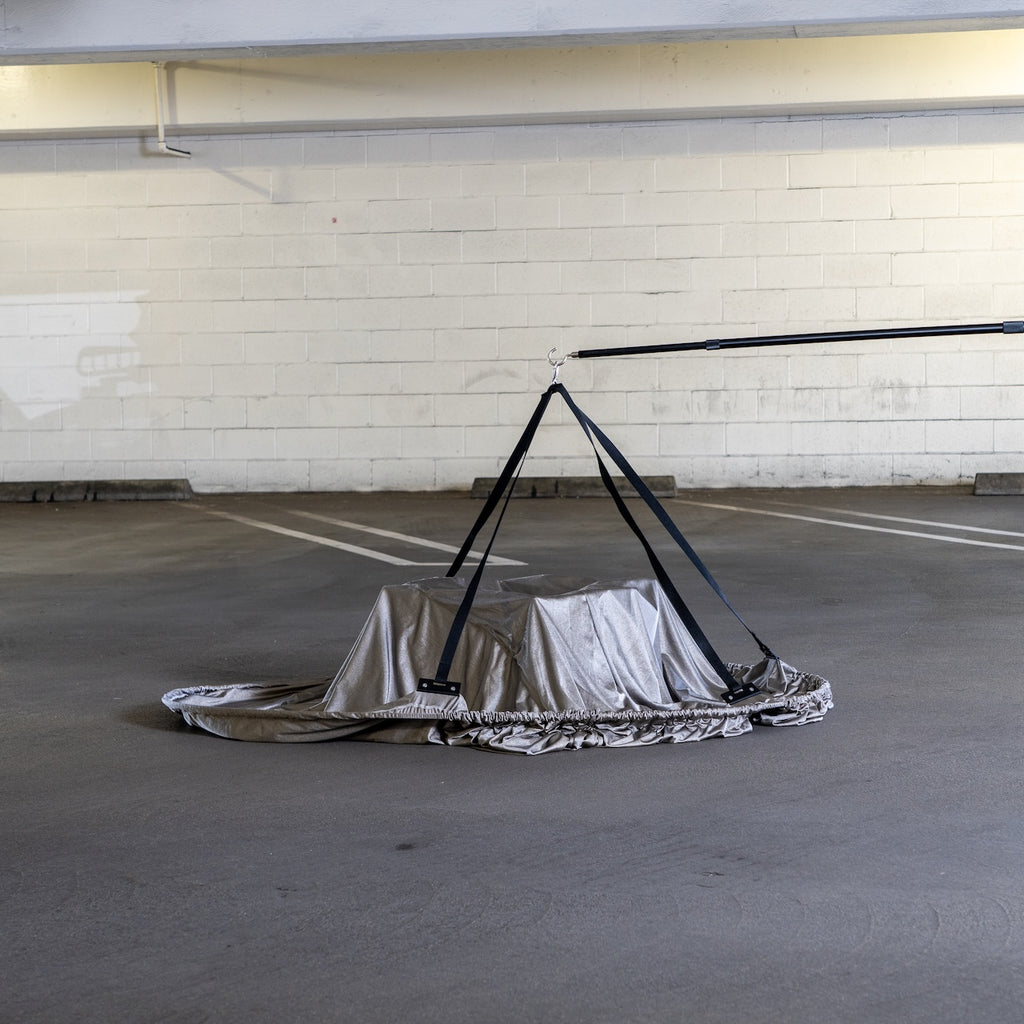

Release
Quick-release hook detaches and retracts, leaving the cloak seated and the operator at standoff distance throughout.
Carried In by Hand, or by Air
The same webbing strap rig that the pole hook grabs can hang from a lifting drone. That means the cover can be flown to the target and released from above, with no one moving forward of the airframe at all.
- Ground PlacementOne operator on the telescoping pole, working from roughly eleven feet back at full extension. Fastest option when the target is reachable on foot.
- Aerial PlacementA carrier drone lifts the cloak by the deployment straps and lowers it over the target, keeping personnel entirely out of the area.
Suspected ordnance, a rooftop or rubble field no one should be walking into, or a target on the far side of a perimeter. If approaching the drone is the risk, the cloak does not need a person to carry it.
The operator never has to stand over the airframe.
Suspect payload, unknown ordnance, live camera. Every one of those is a reason to place the shield from eleven feet away instead of arm's length.
Cloak, Pole, Carry Case
Multi-layer TitanRF Flex Faraday Fabric over a flexible sprung frame, hung from a lightweight telescoping pole. It ships as one kit and packs down to a disc you can wear on your back.
- Shielding FabricMulti-layer TitanRF Flex construction, built for repeated operational cycles rather than single use.

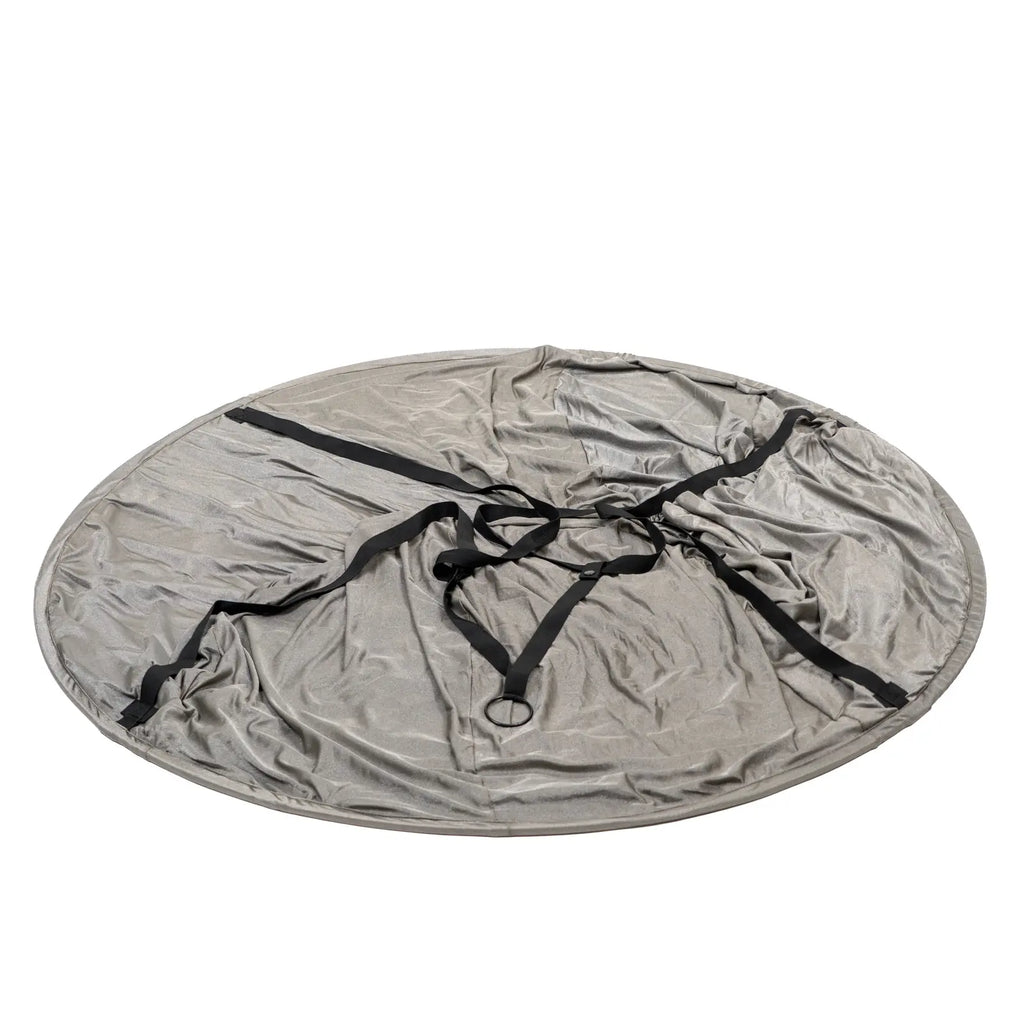

- Deployment StrapsIntegrated webbing straps interface with the pole hook so the cloak can be positioned accurately and released cleanly.
- Collapsible FrameTwists down like a windshield sunshade into a compact circular pack, no disassembly required.
- Certified ShieldingLab tested to military-grade electromagnetic shielding standard GJB 8820, comparable to IEEE-299-2006.
Deployed, Packed, Ready Again
Standoff Signal Isolation, Filmed Live
Watch a full placement cycle from extended pole to released cloak.
Dimensions & Kit Contents
- Cloak Diameter
- 48" (121.92 cm)
- Fabric Coverage Height
- Approx. 30" (76.2 cm) of loose skirt for bulky airframes
- Pole, Collapsed
- 44.25" (112.4 cm)
- Pole, Extended
- 132.5" (336.55 cm)
- Shielding Material
- Multi-layer TitanRF Flex Faraday Fabric
- Testing Standard
- GJB 8820, comparable to IEEE-299-2006
- IncludedDroneCloak with attached deployment straps
- IncludedExtendable deployment pole

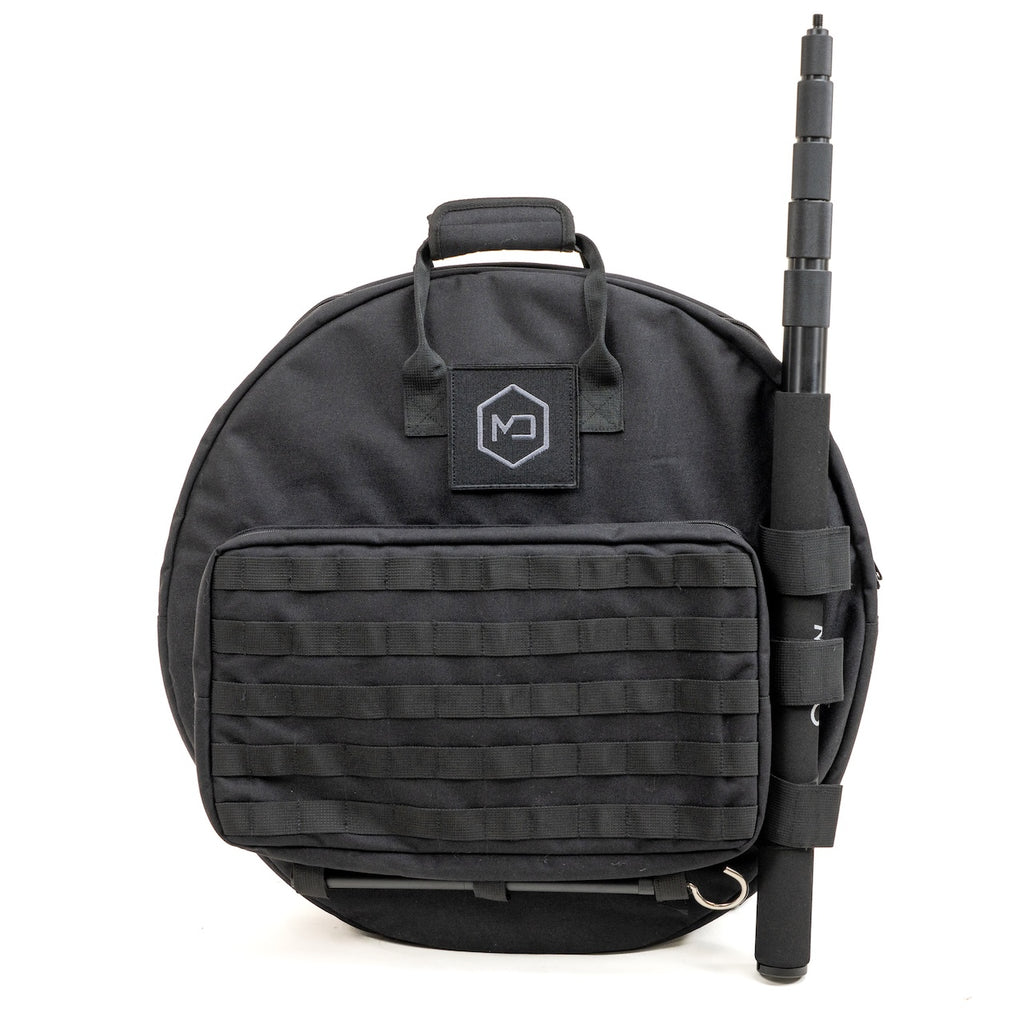

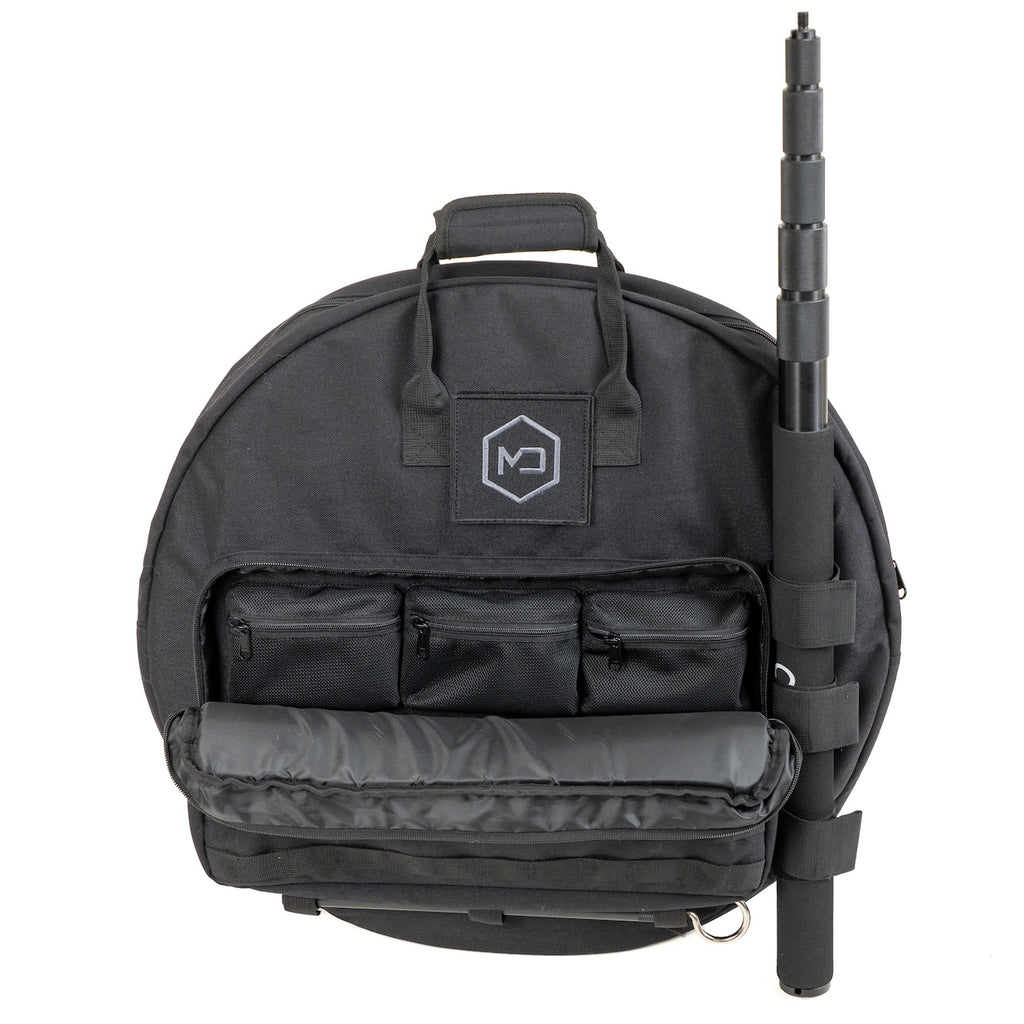

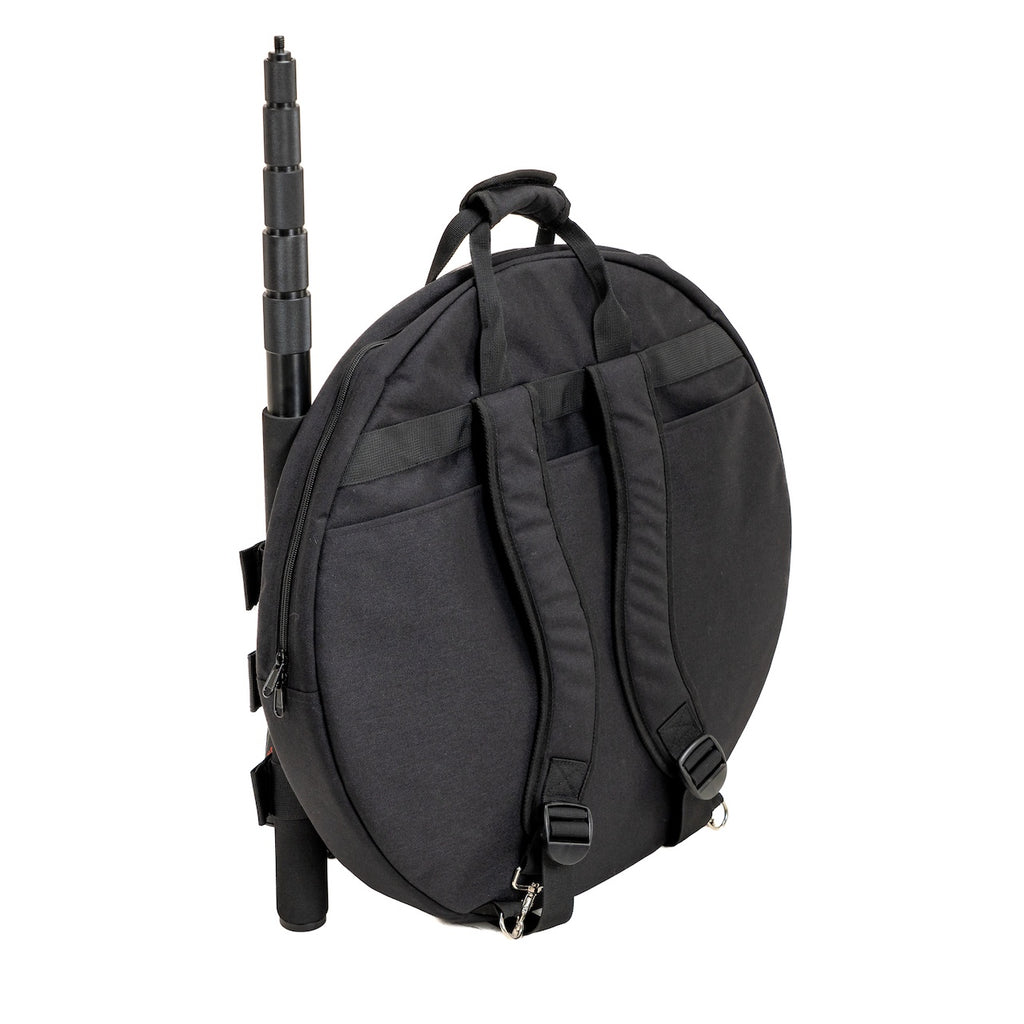

- IncludedCarrying case with backpack straps sized for the collapsed cloak, pole, and accessories
Printed instructions included
Folds Like a Sunshade
The flexible frame collapses using the same twist that folds a car windshield shade. Grasp opposite edges, twist the frame into overlapping loops, and the full dome becomes a compact circle that drops straight into the case. No sacrifice in deployment speed or shielding performance.
Shielding effectiveness can be compromised by punctures, tears, or extended exposure to moisture. Do not pierce, cut, or place sharp or heated objects on the fabric. Avoid deploying on wet surfaces or in heavy rain, and inspect the material for damage before and after each use.
The DroneCloak is a drape-style shield rather than a fully sealed Faraday enclosure. Built for rapid field use, it significantly attenuates control and downlink signals and is effective in typical downed-drone scenarios. For full-seal RF isolation of recovered electronics, pair it with the Recon Faraday Drone Shield or a comparable sealed bag.
Built for Teams Who Handle Threats
Tactical Response
Field-deployable signal suppression for hostile, surveillance, or unidentified drones recovered in theater.
Seized UAV Isolation
RF isolation of seized or downed UAVs to prevent remote data access, command, or evidence destruction.
Render-Safe Containment
Safe containment of drones carrying suspected explosive or remote-triggered payloads during procedures.
Data Preservation
Preservation of onboard flight logs and telemetry, and prevention of remote wipe or transmission.
Site Security
Rapid neutralization of drone threats near airports, power plants, and other sensitive facilities.
Recovery & Transport
Portable solution for controlled drone recovery and short-term containment of RF-emitting devices.
The Rest of the Drone Handling Line
The cloak handles the first ten seconds. These carry the airframe from the seizure point to the forensic bench.
Ready to Secure Your Operations?
Contact our team for custom configurations, volume pricing, and government procurement support.
