TURN YOUR DRONE SHIPPING CRATE INTO A SIGNAL-BLOCKING UAS TRANSPORT ENCLOSURE
The Mission Darkness™ TitanRF™ Faraday Crate Cover is engineered for secure transport and storage of unmanned aircraft systems (UAS), drone payloads, sensitive electronics, and high-risk seized materials. Once installed and sealed, it converts a standard shipping crate — including large wooden transport crates — into a fully shielded faraday enclosure that blocks wireless signals and helps prevent tracking, remote access, command link intrusion, and data exfiltration.
The cover is particularly well suited for wooden storage and shipping crates commonly used to house long-range unmanned systems such as the HESA Shahed-136, which are often transported with wings and components disassembled. When installed over these crate configurations, the TitanRF cover creates a continuous RF isolation barrier, ensuring no signals can enter or exit the enclosure during transit, staging, or storage.
Beyond UAS applications, the cover is also effective for law enforcement, customs, and military units handling seized materials that may contain concealed tracking devices, embedded cellular modules, GPS beacons, RFID tags, or other wireless transmitters. This includes narcotics shipments, contraband, electronics, or other confiscated assets suspected of containing hidden communication components. By fully isolating the crate from RF signals, the cover helps prevent location tracking, remote activation, data wiping, or external monitoring.
Each cover is custom sized to fit precisely over the exterior of your crate, creating a seamless shielding layer with no exposed gaps. An extended header allows for a secure envelope-fold closure, and included conductive faraday tape seals seams and overlaps to maintain uninterrupted conductivity. The result is a field-ready RF isolation solution for logistics operations, evidence control, deployment kits, and controlled storage environments.
Constructed with four layers of TitanRF Faraday Fabric, the cover utilizes a nickel-copper woven conductive material engineered for high shielding effectiveness and durability. The multilayer design enhances structural resilience while delivering consistent attenuation across the wide frequency ranges commonly used by drones, tracking devices, and counter-UAS systems. The cover blocks WiFi, Bluetooth, cellular (including 5G), GPS and GNSS, RFID, NFC, and radio frequencies from low MHz through 40GHz.
A waterproof outer protective cover is available upon request for operations requiring additional environmental protection during outdoor storage or transport. Please contact us for a custom quote and crate sizing consultation.
FEATURES
-
Constructed from four layers of TitanRF Faraday Fabric to provide shielding redundancy and added durability against environmental exposure during shipping and storage
-
Creates a complete external shielding enclosure when installed over your crate, forming a continuous protective barrier around UAS platforms, flight controllers, radios, trackers, and mission critical drone components
-
Extended fabric header folds over the crate opening and secures closed, maintaining uninterrupted shielding across the entire surface
-
Seams sealed with included 2" TitanRF conductive Faraday Tape (full roll included) to ensure electrical continuity; tape can also be used to repair punctures or field damage
-
Blocks WiFi, Bluetooth, cellular (including 5G), GPS, RFID, NFC, and other common RF signals, preventing tracking, interception, and interference with drone command links, GNSS positioning, telemetry, and ISR payload systems
-
Lab-tested and certified shielding performance — TitanRF Faraday Fabric meets MIL STD 188-125 and IEEE 299-2006 standards, validated against HEMP, CME, and related EM threats
-
Prevents RF ingress and egress during shipping and storage, protecting sensitive electronics from signal-based compromise or disruption including drone autopilots, encrypted storage devices, and ground control equipment
-
Lightweight, flexible construction allows for easy installation, removal, and compact storage when not in use
-
Custom-built to match your crate dimensions and logistics requirements for mission-ready UAS deployment
TECHNICAL HIGHLIGHTS
-
Shielding Material:
- TitanRF Faraday Fabric (polyester + copper + nickel) and compatible TitanRF Faraday Tape
-
Shielding Performance:
- Tested to MIL-STD-188-125 and IEEE 299-2006 shielding effectiveness standards
- Typical attenuation with multi-layer construction: 80dB–120dB from 10MHz–40GHz (frequency-dependent)
-
Threats Mitigated:
- Blocks RF signals (WiFi, 5G, LTE, Bluetooth, GPS, RFID, and NFC) to help prevent drone tracking, command link disruption, unauthorized wireless access, and interference with onboard avionics and mission electronics
-
Customization Options:
- Crate, box, container, and case covers or liners sized to your specifications
STANDARD SIZE OPTIONS AVAILABLE:
-
SKU: MDFF-TRF-COVER-92-72-22
- Fits crates up to 96” × 72” × 22”
-
SKU: MDFF-TRF-COVER-52-32-28
- Fits crates up to 52” × 32” × 28”
-
SKU: MDFF-TRF-COVER-39-18-18
- Fits crates up to 39” × 18” × 18”
-
SKU: MDFF-TRF-COVER-22-22-22
- Fits crates up to 22” × 22” × 22”
-
SKU: MDFF-TRF-COVER-CUSTOM
- Custom sizes available; contact us for a quote
OPERATIONAL CAPABILITIES
-
Ship UAS, drone payloads, seized materials, or sensitive electronics in standard crates while maintaining full RF isolation during transit.
-
Relocate controlled, classified, or high-value devices between facilities without risk of tracking, signal leakage, or unauthorized wireless access.
-
Protect RF-sensitive navigation modules, ISR sensors, flight controllers, and prototype UAS hardware during air, sea, or ground freight.
-
Instantly convert existing wooden or composite shipping crates into RF-shielded enclosures without permanent modification or structural changes.
APPLICATIONS
-
Drone Systems and Payload Transport
- Isolate UAS, ground control hardware, payload electronics, and spare components packed in crates to prevent RF interference, activation, or tracking during transport.
-
Forensics and Evidence Transport
- Shield digital evidence systems, electronic media, and devices recovered from drones or crime scenes that are secured inside transport crates. The cover also protects seized materials, including narcotics shipments, contraband, electronics, and other confiscated assets, that may contain embedded GPS trackers, cellular modules, RFID tags, or hidden wireless transmitters. By blocking all incoming and outgoing signals, it prevents remote wiping, signal-based tampering, tracking, or unauthorized data access during chain of custody.
-
Military and Defense Logistics
- Protect UAS communications equipment, command and control electronics, sensor payloads, and mission hardware shipped in program crates between bases, contractors, and operational sites.
-
Law Enforcement and Public Safety Agencies
- Safeguard drone surveillance platforms, ground control units, data collection systems, and specialty electronics transported in secure crates during deployments, disaster response, or inter-agency transfers.
HOW IT WORKS
-
Measure Your Crate
- Provide external crate length, width, and height along with any relevant handling or access requirements.
-
We Engineer the Cover
- Our team uses your dimensions to optimize a design for shielding performance and material efficiency.
-
Multi-layer Construction
- Four layers of TitanRF Faraday Fabric provide a continuous RF shielding barrier around the crate.
-
Install and Close
- Place the crate in the cover and fold the extended fabric header over the opening.
-
Seal the Enclosure
- Use the included conductive faraday tape to secure the folded closure and maintain electrical continuity.

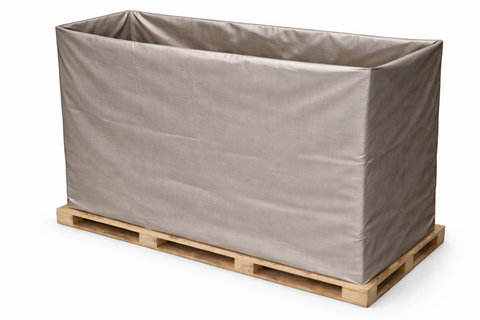

Insert crate into cover.

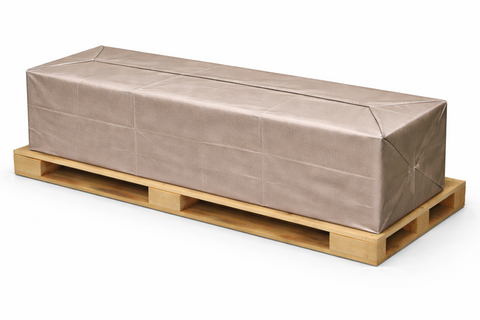

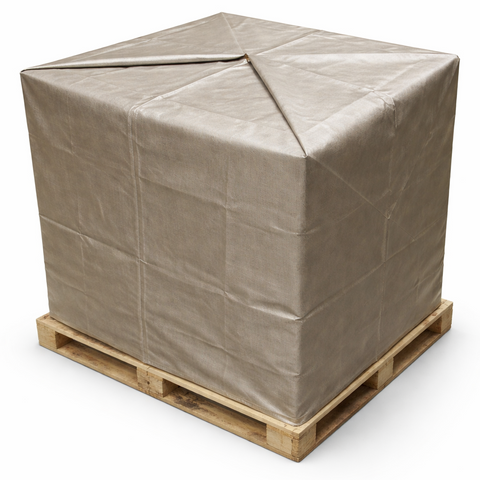

Fold faraday fabric to close opening.

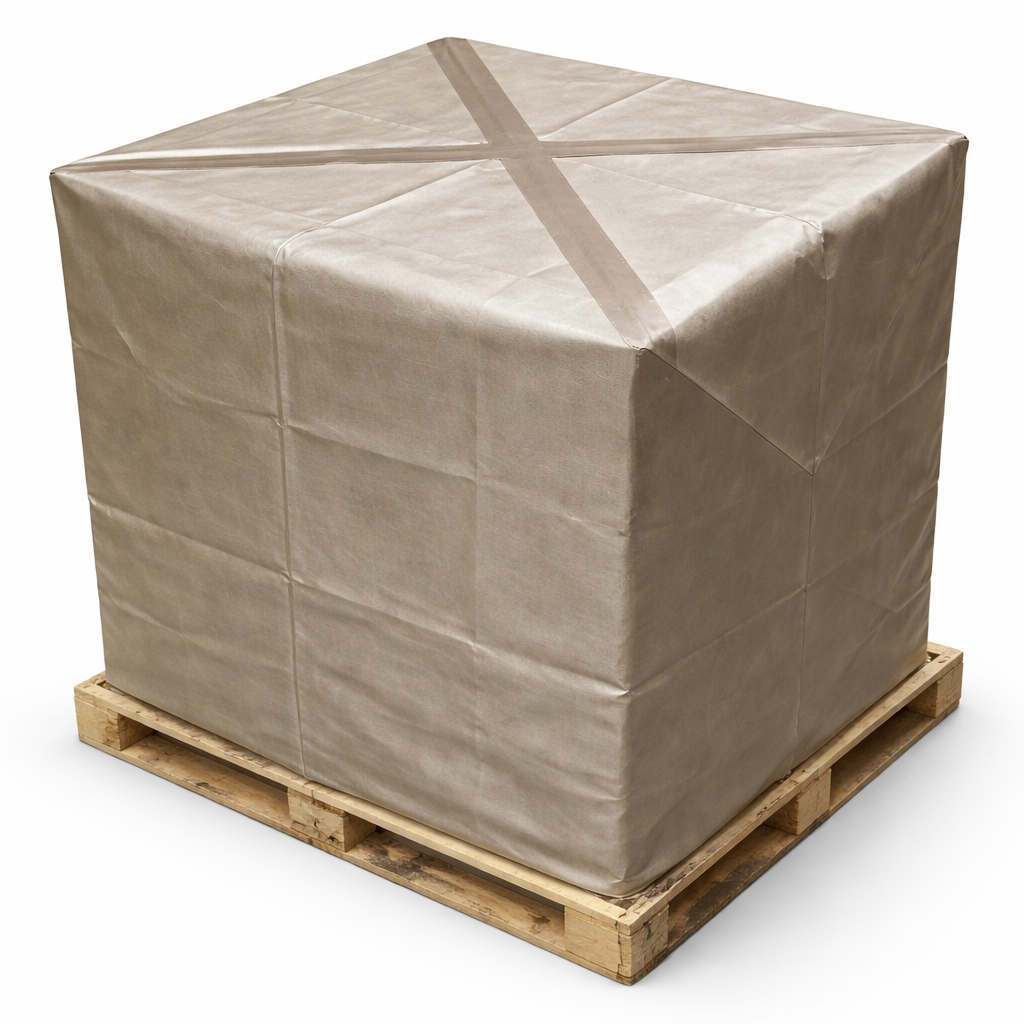

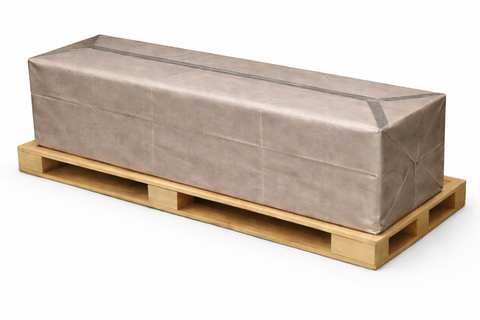

Secure with faraday tape over seams.
USAGE WARNING
-
Faraday fabric performance can be compromised by prolonged exposure to water, sharp objects, or punctures; the cover should not be used to contain wet crates or unprotected sharp items that could damage the shielding material.
-
Ensure no items, such as cables, penetrate the cover, as this will allow signals to pass through.
STANDARD AND CUSTOM-FIT FARADAY COVERS
TitanRF Faraday Crate Covers are not pre-built and require a formal quote, as each one is made to match your exact specifications. We can fabricate covers to any dimensions you need. Custom orders include a slight lead time to allow for fabrication.
Ready to spec a cover or liner for your drone airframe, payload kit, ground control station, or UAS transport crate? Send us your container dimensions, quantities, and application details, and we'll provide a quote with lead time and available testing support.
