Mission Darkness™ Blocker Locker™ 7

  • Sale
  • $ 4,999

Additional Resources

Download Product Brochure

KEEP DEVICES LIVE

From Seizure to Evidence Storage to Data Extraction

The Mission Darkness™ Blocker Locker™ 7 system solves multiple problems for forensics investigators and labs. To effectively access and recover data from cell phones and tablets, the latest forensic tools require devices to stay live. It can be difficult to keep devices shielded from RF signals, charged at all times, and securely locked. The Blocker Locker 7 accomplishes all of these objectives in a single cabinet designed specifically for shielding, charging, and locking. The unit includes seven fully loaded compartments, while additional Charge & Shield Faraday Bags can be purchased as required.

The charging feature is designed to prevent lockout mode and reduce the amount of time needed to break a passcode, enabling the maximum amount of data extraction and unlocking with tools like GrayKey, Cellebrite, Magnet, XRY, BlackBag, Oxygen, etc.

To extract data from a device in the Blocker Locker 7, simply unlock the individual compartment, disconnect the power cable, remove the Charge & Shield Faraday Bag, and transfer it into a forensic faraday box. The bag can be easily opened inside the box (the magnetic NeoLok™ closure reduces faraday glove abrasion) while the device is passed into the shielded enclosure. Shielding and power are never compromised, providing a seamless process for investigators.

Video demonstration of the complete Blocker Locker system

Video demonstration of the Charge & Shield Faraday Bag


Secure evidence cabinet with 7 fully loaded compartments

The system ensures that officers follow the correct evidence processing steps


Blocker Locker Features

    • Secure cabinet with seven locker compartments designed specifically for forensic investigators to keep devices individually locked, shielded, and charged during storage
    • Primarily used as an evidence locker for cell phones and tablets
    • System ensures that device intake and storage is correct so that the passcode unlocking and data extraction process can be completed properly with the best results
    • Each cabinet has a power outlet with two USB power receptacles and a unique outer lock
    • Locking system consists of two keys for each locker compartment, two master keys, and a key dropbox
    • Power indicator light on main cabinet
    • Basic usage instructions sticker printed on the locker itself (additional in-depth instruction sheet included)
    • Includes seven Mission Darkness Charge & Shield Faraday Bags for Phones plus all necessary charging components (one bag stationed in each locker compartment)
    • Charge & Shield Faraday Bags are uniquely designed for charging devices in the Blocker Locker 7, then being transferred to a faraday forensic box
    • The system allows devices to remain live and uncorrupted after seizure, until they can be interrogated or have data extracted at a later time
    • Charge & Shield Faraday Bags block WiFi (2.4 & 5GHz), Bluetooth, cell signals (4G LTE+), GPS, RFID, and radio signals with 60dB-80dB average attenuation
    • Mission Darkness Blocker Locker 7 SKU: MDBL-7

Lock, Shield, Charge, and Extract Data from Devices

The complete Blocker Locker 7 - Charge & Shield Evidence Cabinet system is primarily used with digital forensics evidence items such as cell phones, tablets, GPS trackers, and similar electronics. The dual sided USB filter in each Charge & Shield Faraday Bag allows the user to easily switch from power to extraction tool when needed.

Purchase Additional Charge & Shield Faraday Bags to Increase Capacity

The Blocker Locker 7 comes with seven Charge & Shield Faraday Bags for Phones plus all necessary charging components. The bag can be transferred from the locker to the lab without compromising RF shielding. Up to two Charge & Shield Faraday Bags can fit in each locker compartment. Purchase additional Charge & Shield Faraday Bags to support more than seven devices in the cabinet. Available in phone size (SKU: MDBL-CS-S) or tablet size (SKU: MDBL-CS-M).

Each standard Charge & Shield Faraday Bag kit includes:

    • Charge & Shield Faraday Bag with transparent window, dual sided USB filter, NeoLok magnetic closure, serial number, card pocket, and zipper compartment on back to hold cables
    • Shielded USB A/M to A/M cable (1 meter)
    • Charging cables: lightning, micro USB, USB-C, and USB extension
    • "Go Kit" charging cable add-on includes a dual USB car charger adapter and a dual port 12W wall charger

Dimensions & Weight

    • Single locker compartment interior dimensions: 13" x 18" x 4.5"
    • Cabinet exterior dimensions: 15" x 18" x 34"
    • Cabinet weight: 85lbs | Shipping weight: 105lbs

Keep digital forensics evidence on cell phones and tablets locked, charged, and shielded from RF signals

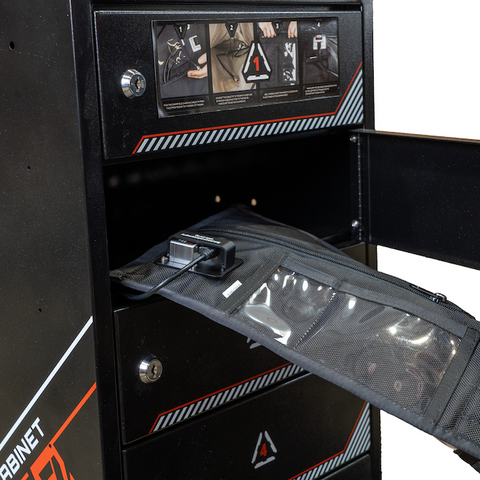

Introduce new devices by placing them inside the Charge & Shield Faraday Bag stationed inside each locker compartment


Blocker Locker System Usage Steps

1.) Insert Device in a Charge & Shield Faraday Bag

Once a cell phone, tablet, or similar device is received at the police station, the officer places it inside a vacant Mission Darkness Charge & Shield Faraday Bag, which is stationed inside each Blocker Locker compartment. The corresponding cable tip (provided in the bag's zipper pocket) is used to connect the device to the bag's inner USB port. The bag is then sealed using the NeoLok™ magnetic closure.

2.) Connect the Bag to Power

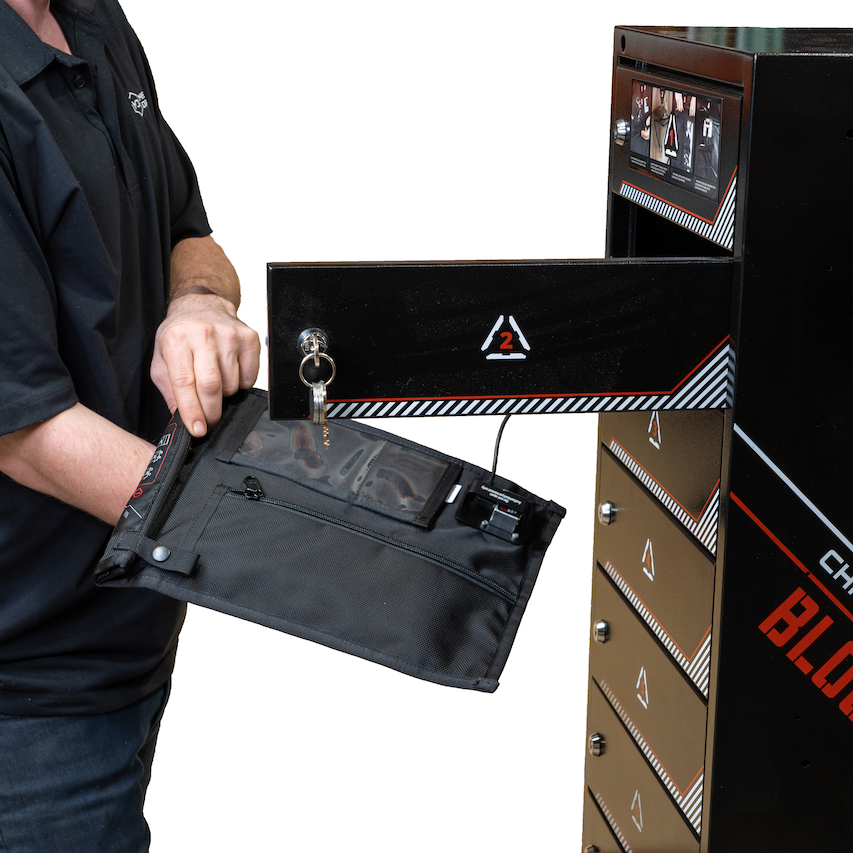

The officer connects the shielded USB A/M to A/M cable that is plugged into the locker compartment power outlet to the outer USB port on the Charge & Shield Faraday Bag. Device status can be confirmed by viewing the screen through the bag's transparent window.

3.) Lock the Bag in a Blocker Locker Compartment

The officer locks the compartment, then puts the key in the dropbox, and leaves evidence notes relating to the locker contents. The device can remain in the compartment securely locked, charged, and shielded indefinitely.

4.) Disconnect the Bag from Power

At the point when passcode breaking or data extraction is to occur, the individual handling the evidence uses a key (either the master or corresponding one) to open the locker compartment. The user disconnects the USB cable connected to the outer USB hub on the bag, and removes the sealed bag from the compartment.

5.) Transfer for Data Extraction

The device remains shielded in the Charge & Shield Faraday Bag while it is transferred to the lab or location where it will be analyzed.

*Further steps vary depending on the usage scenario (see below).

Back side of bag + charging cables

Front side of bag


Additional Usage Scenarios

How to Use with GrayKey

The Charge & Shield Faraday Bag can be transferred to an RF shielded room or faraday forensic box for use with unlocking tools like GrayKey.

  • If using with a forensic box like the Mission Darkness BlockBox Lab, place the GrayKey unit inside the box and connect it to the inner RJ45 ethernet port.
  • Insert the Charge & Shield Faraday Bag carrying the device into the box and close the lid.
  • Place hands in the conductive gloves and open the Charge & Shield Faraday Bag. The NeoLok magnetic closure is easy to open inside the box and reduces faraday glove abrasion (compared to Velcro closure bags).
  • Once the device is removed from the bag, connect it to GrayKey and use the tool as directed.

How to Transfer a Device from a Standard Faraday Bag to a Charge & Shield Faraday Bag

  • If a device arrives to the police station already in a standard faraday bag, it can be transferred to a Charge & Shield Faraday Bag using a forensic box with hands-on access. Simply place both bags inside, close the lid, and transfer the device using the conductive gloves. Faraday bags with a NeoLok magnetic closure are preferred when being handled by conductive gloves.

If Using a Charge & Shield Faraday Bag without the Blocker Locker

  • The Charge & Shield Faraday Bag can be purchased and used independently without the Blocker Locker. The USB filter enables the device to receive power while it is transferred throughout various locations such as a vehicle, desk, or evidence cabinet, until it can be analyzed in a different location. Use the shielded USB A/M to A/M cable attached to the outer side of USB filter to connect a portable battery or power outlet to charge the device inside. For data extraction, the user simply disconnects the power source and connects to an extraction tool.

Ability to Increase Cabinet Capacity by Purchasing Additional Charge & Shield Faraday Bags

Components included with the Charge & Shield Faraday Bag "Go Kit"

  • Charge & Shield Faraday Bags come in phone size (SKU: MDBL-CS-S) and tablet size (SKU: MDBL-CS-M).
  • Each Blocker Locker compartment can fit up to two Charge & Shield Faraday Bags, enabling you to increase the capacity from 7 to 14 devices.
  • Each Charge & Shield Faraday Bag includes a comprehensive charging cable kit. Options include the "Standard Kit" or "Go Kit." You can select the variation you want from the dropdown menu on the product page.
  • The "Standard Kit" is perfect if you only want to increase the Blocker Locker capacity and don't need to charge devices in different locations.
  • Upgrade to a "Go Kit" if your officers need power while transporting a device in a vehicle or at a desk. The "Go Kit" includes the same items as the "Standard Kit" plus additional charging components (dual USB car charger adapter and dual port 12W wall charger). *See the comparison chart below for the complete list of included components.

Key Features our Customized Shielding System Presents - Compared to Piecing Together your Own Materials

The device connects to power through the bag via USB cable

  • The Blocker Locker system was created to solve the ever-present device storage issues that many departments face. The system enables proper processing during each stage in custody, from device intake to interrogation.
  • The pairing of the Charge & Shield Faraday Bag plus Blocker Locker allows for transporting, charging, data extraction, and keeping devices securely stored while shielded from RF signals.
  • The locker has the capability to charge and fit two Charge & Shield Faraday Bags (up to tablet size), unlike mainstream locker compartments which are too small and only designed to hold a phone or tablet without the added mass of a faraday bag and cables.
  • The included cables are shielded and specifically selected for use with the Charge & Shield Faraday Bag and locker.
  • We tailored the locker charging setup to fit the digital forensics process. We included a power indicator light, dual USB power receptacles in each compartment, usage instructions, key lockbox, and all of the charging components needed.
  • Incoming officers or detectives that don't know how to handle the device can view the instructional sticker printed on front of the locker cabinet to follow the correct processing steps (as pictured below).

Instructional sticker printed on front of the locker demonstrating how to use the Charge & Shield Faraday Bag


Evidence Cabinet Compartments Stay Secure with Unique Locks & Key Dropbox

  • Find an empty Blocker Locker compartment and insert the device into the Charge & Shield Faraday Bag (further connectivity instructions are listed above).
  • Lock the compartment door using the matching key. Two keys for each compartment are included.
  • Place the compartment key in the secure dropbox attached to the Blocker Locker.
  • Evidence manager uses the master key (two included) or the compartment key to access the compartment when needed.

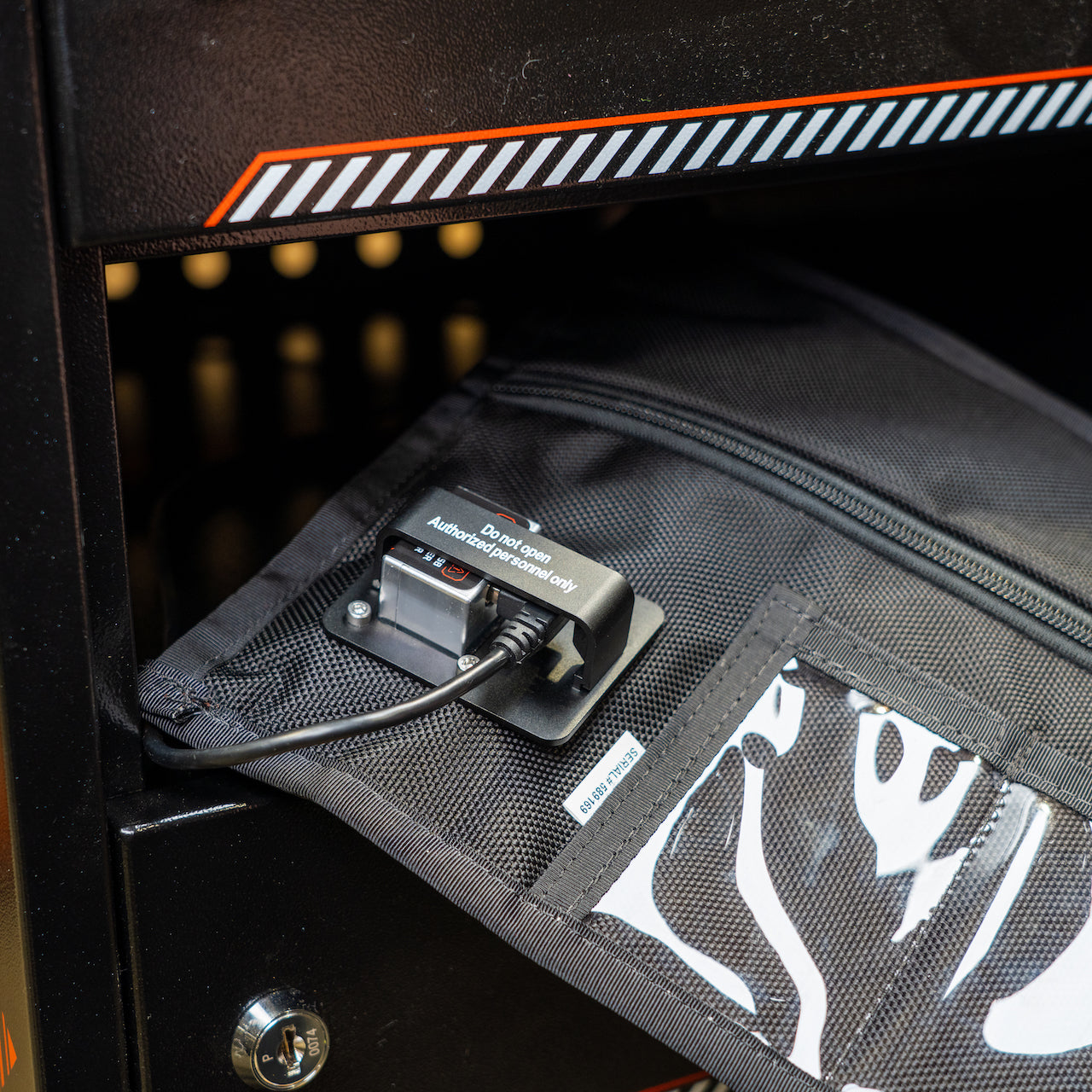

Each compartment includes a custom setup for charging devices through the Charge & Shield Faraday Bag's dual sided USB filter
